XPON ONU 4GE+2POTS+WiFi6 AX3000 dual band

Release time:2024-12-21 17:53viewed:times

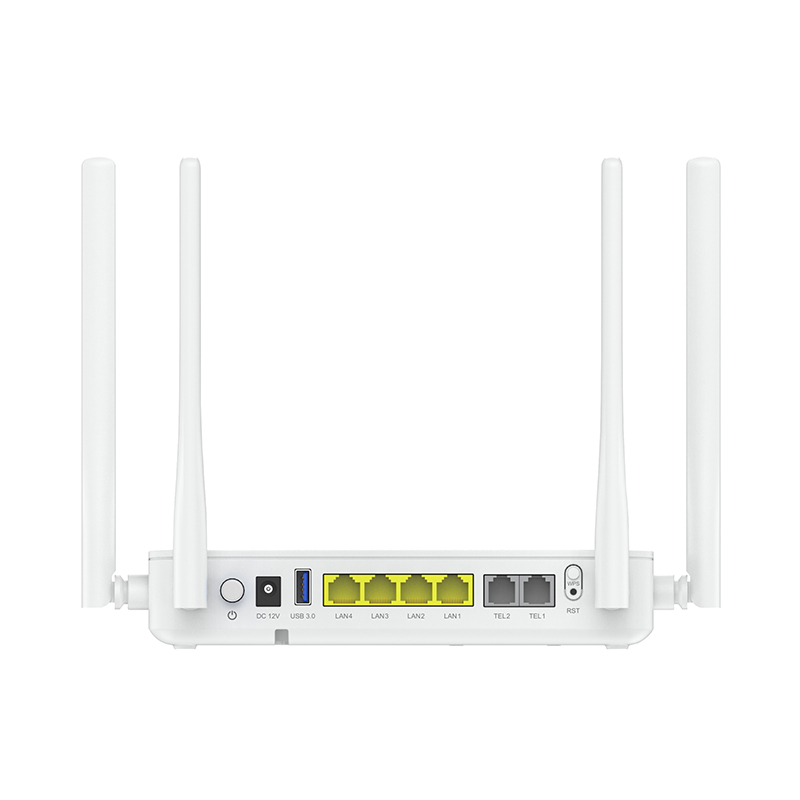

  • XPON ONU 4GE+2POTS+WiFi6 AX3000 dual band


Introduction



X426R is 4GE+2POTS+AX3000 with USB optional XPON(GPON and GEPON dual mode) HGU ONU.

The device is fully comply with ITU-T G.984/G988 and IEEE802.3ah. The equipment integrates the reliability

maintainability and   security design of carrier-grade level, and provides customers with the last kilometer of broadband

access to residential and corporate customers. It can also be applied to a strictly temperature environment, and can work

stable for longtime without service interruption.

X426R is interoperable with all brands of OLT and is Easy to install, provisioning and maintenance. The device can identify

 the working mode of the OLT to automatically complete the switch between GPON and EPON, The device can be freely

switched between bridge and routing modes, and supports PPPoE dial-up and IPv6 functions in routing mode to meet the

needs of different scenarios.


Product Parameters


Hardware Parameter

Dimension

246mm×158mm×38mmL×W×H

Net weight

359g

Operating condition

• Operating temperature: -10 ~ +50C

Operating humidity: 10 ~ 90% (non-condensing)

Storing condition

• Storage temperature: -40 ~ +70C

Storage humidity: 5 ~ 95% (non-condensing)

Power adapter

DC 12V/ 1.5A, external AC-DC power adapter

Interfaces

G/EPON+4×GE+USB 3.0+2×POTS+WiFi AX3000

Buttons

Reset ,WPS

Indicators

Power, PONLOSInternetLAN1-4, USB, 2.4G, 5G, TEL1,TEL2, WPS



Interface Parameter








PON interface

• 1XPON port(EPON PX20+ and GPON Class B+)

PON standard: GEPON IEEE802.3ah, GPON ITU-T G.984

• SC single mode, SC/UPC connector

TX optical power: 04dBm(EPON) or 0.55dBm(GPON)

RX sensitivity: EPON: -27dBm GPON: -28dBm

Overload optical power: -3dBm(EPON) or  - 8dBm(GPON)

Transmission distance: 20KM max

Wavelength: TX 1310nm, RX1490nm

LAN interface

• 4×GE Auto-negotiation RJ45 ports

POTS interface

• 2×RJ11 Connector

USB interface

 1×USB 3.0

WiFi interface

Compliant with IEEE802.11b/g/n/ac/ax

WiFi: 2.4GHz 2×2, 5.8GHz 2×2 MIMO

• 4*5dBi external antennas

Multiple SSID



Software Features

PON

 G/EPON Dual Mode

 SN and LOID+Password multiple registration methods



Layer2

 Support VLAN transparent/tag/translate/trunk

 Support Layer 2 802.1Q VLAN, 802.1P QoS, ACL etc



Layer3

 IPv4, IPv6 and IPv4/IPv6 dual stack

 Support bridge, router & bridge/router mixed mode

 DHCP v4/v6 Client/Server, PPPoE & Static

 Support Static Routing

 Support hardware NAT

Multicast

 Support IGMPV2 and MLD proxy/ snooping

 Support MultiCast VLAN & MultiCast Maximum Address

Security and Firewall

 DDoS, Filtering Based on ACL/ MAC/ URL

 Support DDNS, ALG, UPnP, Port forwarding, DMZ

 HTTP/ SSH/ Telnet Service Access Control

 Support Parent control

 Support PPTP , L2TP, Pass-through service

QoS

 Support 4 queues

 Support SP, WRR, 802.1P and DSCP

VoIP

 SIP and IMS SIP

 G.711a/ G.711u/ G.722/ G.729/ G.723/ G.726 Codec

 Echo cancellation,VAD/CNG,DTMF Relay

 T.30/T.38 FAX

 Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way

   Meeting conference

 Line testing according to GR-909

 Support high-quality broadband voice

WiFi

• Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz

• WiFi Encryption:WEP-64/WEP-128/ WPA/WPA2/WPA3

• Support WIFI Easy-mesh function

Management

 Support Telnet, CLI, OMCI/OAM ,TR069 and Web management




Ordering information



Product Name

Product Model

Descriptions

XPON ONU

4GE+2POTS+WiFi AX3000+USB3.0

(Realtek chipset)

X426R

4 * 10/100/1000Mbps Ethernet interface, 1*G/EPON interface,  2* VoIP(RJ11) interface ,1 * USB 3.0 interface,

4* external antennas, external power adapter DC 12V, 1.5A .
