XPON ONU
HGU/SFU 1GE+CATV
1. Overview

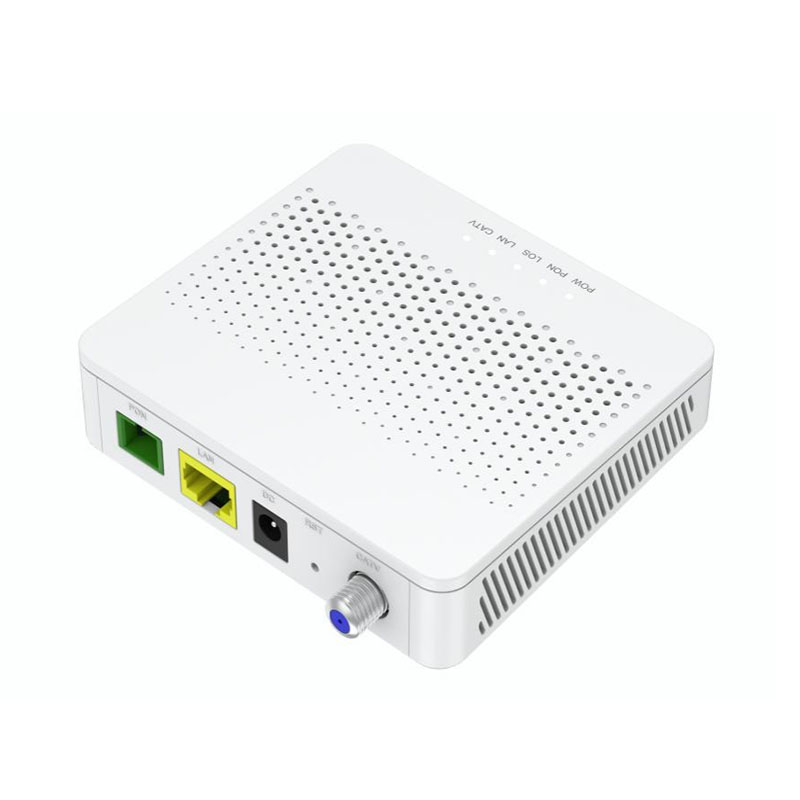

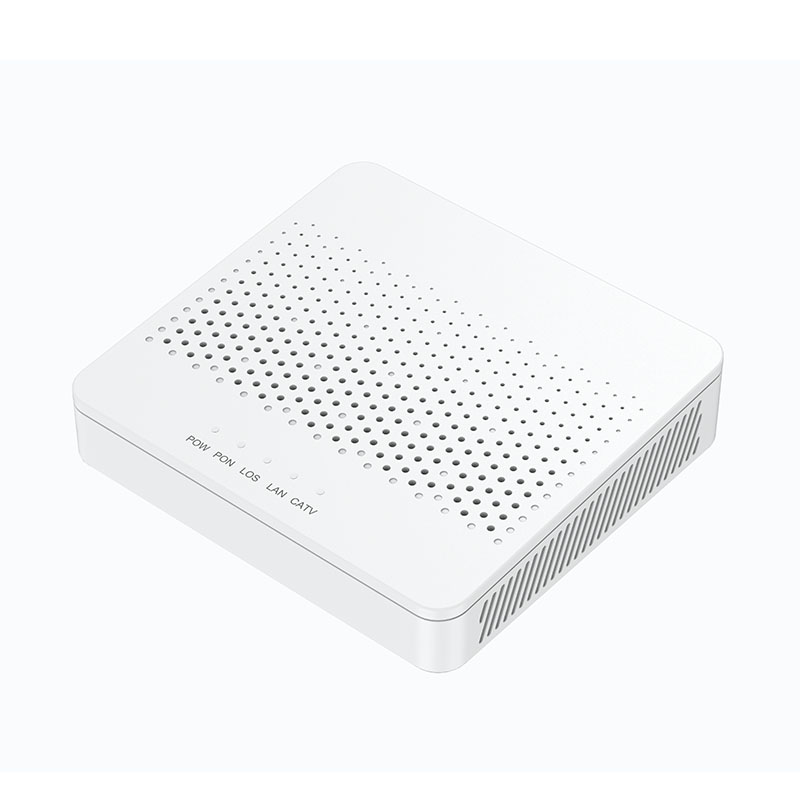

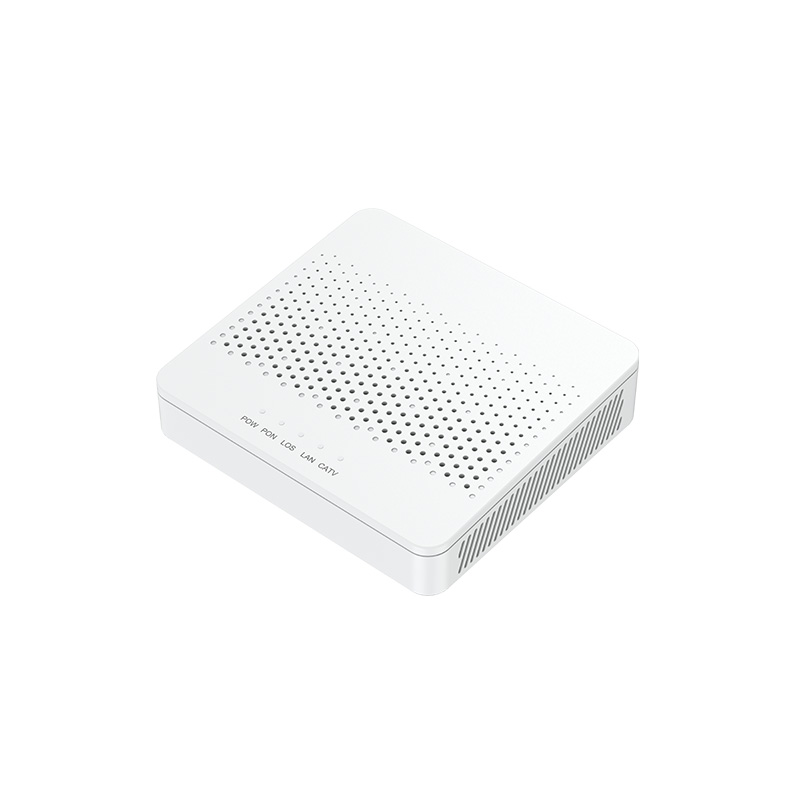

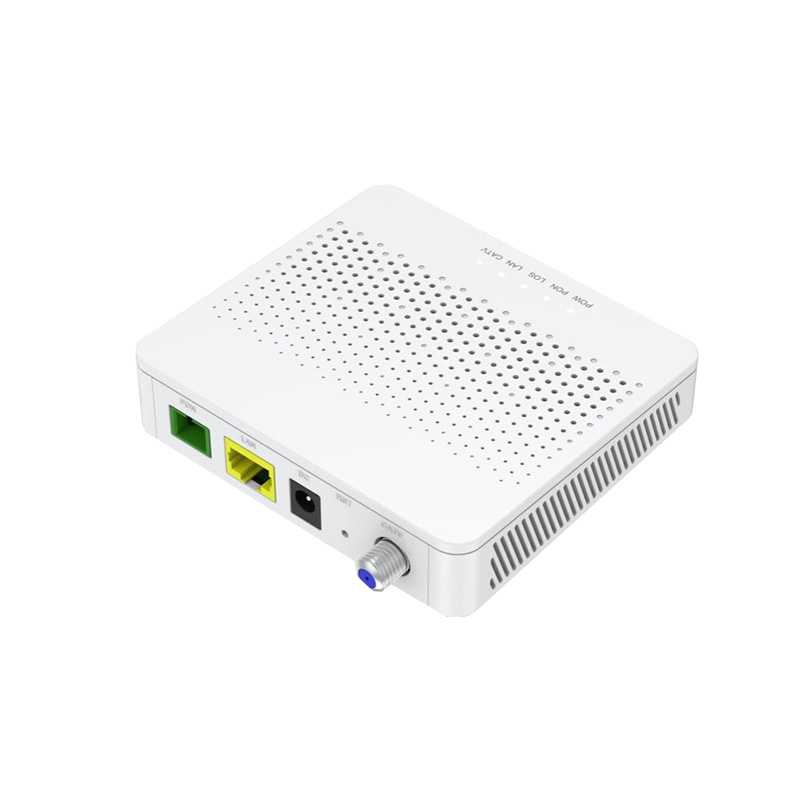

DFN-X2100AG is 1GE+CATV XPON(GPON and GEPON dual mode) SFU ONU. It is designed to meet the multi-service
needs of fixed network operators or cable operators. It is widely used in FTTO (office), FTTD (desk), FTTH (home)
broadband access, CATV, video surveillance and other requirements. The device is fully comply with ITU-T G.984/G988
and IEEE802.3ah.
The equipment integrates the reliability, maintainability and security design of carrier-grade level, and provides customers
with the last kilometer of broadband access to residential and corporate customers. It can also be applied to a strictly temperature
environment, and can we work stable for longtime without service interruption.
DFN-X2100AG is able to work interoperability with different OLT vendor like HUAWEI/ZTE/NOKIA/FIBERHOME/BDCOM,
Easy to install, provisioning and maintenance. The device can identify the working mode of the OLT to automatically complete the
switch between GPON and EPON, The device can be freely switched between bridge and router modes, and supports PPPOE
dial-up and IPV6 functions in router mode to meet the needs of different scenarios.
2. Features
Ø Integrated CATV receiver, RF Bandwidth (MHz):45~1000, AGC Dynamic Range(dBm):-15~+0, output level:76±2dBuV
Ø SFU ONU with GalaChip GC1601 MCU
Ø Compliance with IEEE 802.3ah (EPON) & ITU-T G.984/G988(GPON) standard
Ø GPON/EPON auto switch, Dual mode ONU compatible with popular GEPON and GPON OLT
Ø Triple Solution Data and Cable TV(RF bandwidth:45~1000MHz, AGC function)
Ø Support IPV4 & IPV6 Management and transmission
Ø Support Layer 3 gateway with hardware NAT
Ø Support WAN with Route/Bridge mode
Ø Support Layer 2 802.1Q VLAN, 802.1P QoS, ACL etc
Ø Support IGMP V2 and MLD proxy/ snooping
Ø Support Telnet, CLI, OMCI/OAM and Web management
Ø Support ALG, DMZ and Firewall
Ø Support bi-directional FEC
Ø Support remote software upgrading
Ø Support VEIP and PPTP
3. Parameters
Description | Unit | Value | Comments |
PON Interface | |||
Interface Type | SC/UPC or SC/APC, CLASS B+ | Customization | |
PON standard. | GEPON IEEE802.3ah | ||
GPON ITU-T G.984,G988 | |||
Working wavelength: | nm | Up: 1310 | |
nm | Down: 1490 | ||
RX Optical power sensitivity | dB | -27 | |
Transmitting optical power | dBm | 0 ~ +5 | Class C+ is Optional |
Transmission distance | km | 0～20 | |
Transmission rate: | Gbps | GPON: Up 1.244；Down 2.488 | |
Gbps | EPON: Up 1.244；Down 1.244 | ||
CATV Electrical Specifications | |||
Optical Connector Type | SC/APC | ||
Input optical power range | dBm | -18~ +2 | |
Optical return loss | dB | ≥45 | |
Wavelength | nm | 1550 ±10 | |
RF Output Connector | F | Imperial or metric RF female connector | |
RF Bandwidth | MHz | 47～1000 | |
Slope | dB | 0~2 (47～1003MHz) | |
RF impedance | Ω | 75 | |
RF output return loss | dB | ≥14 dB | |
RF output lever | dBuV | 76±2（@-15~0dBm） | |
AGC Range | dBm | 0 ~ -15 | |
C/N | dB | ≥47 @-7dBm | |
CTB | dB | ≥60 @-7dBm | |
CSO | dB | ≥60 @-7dBm | |
MER | dB | ≥35 @-10dBm | |
Ethernet Interface | |||
Interface type | 1* RJ45 | ||
Interface parameters | 10/100/1000BASE-T+10/100BASE-T | ||
Environmental Specifications | |||
Indicator | LED | PWR, LOS, PON, LAN, CATV | |
Operating condition | ℃ | Operating temperature: -20 ~ +50 | |
Storing condition | ℃ | Storing temperature: -30 ~ +60 | |
Humidity | % | 5~90(non-condensing) | |
Power supply | V | DC 12V, 1A adapter | |
Power consumption | W | ≤5 | |
Mechanical Specifications | |||
Dimension (LxWxH) | mm | 100×95×22（L×W×H） | |
Net Weight | kg | 0.105 | |
Color | White | Black is optional | |
4. Shipping packaging
Description | Quantity | Weight | Carton Size |
Shipping packaging | 1pcs/ctn | 0.255kg/ctn | 195*128*48mm |
40pcs/ctn | 10.5kg/ctn | 400*500*265mm |
5. Ordering information
Product Name | Product Model | Descriptions |
XPON ONU 1GE+CATV (WDM) (Galachip chipset) | DFN-X2100AG | 1 * 10/100/1000Mbps Ethernet interface, 1* E/GPON interface, 1*RF (single fiber) port ,external power supply adapter DC 12V, 1A |
