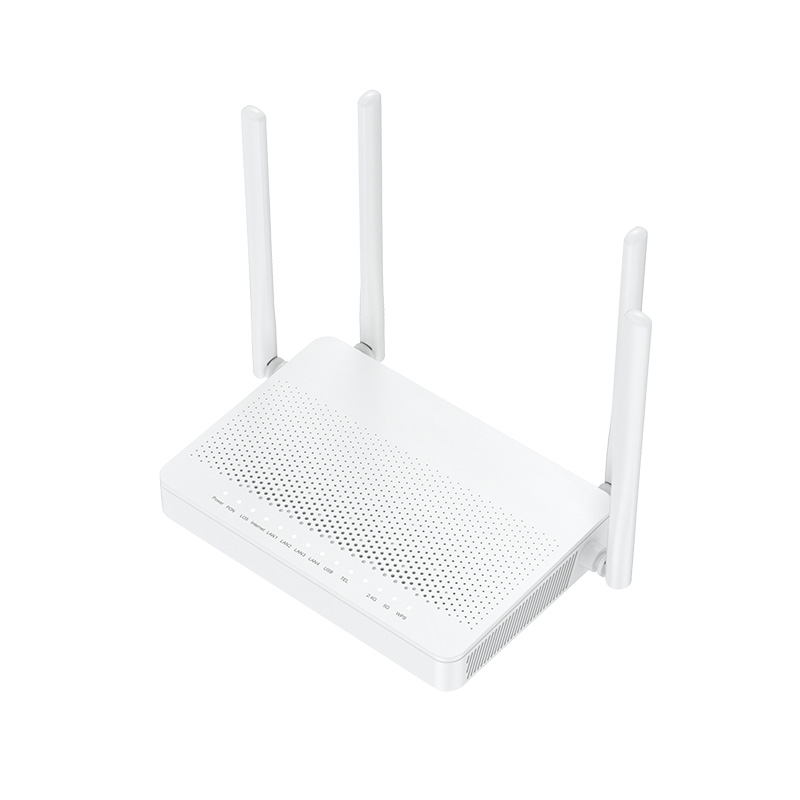

XPON ONU
4GE+1POTS+WIFI6 AX3000
s
Introduction
X416R is 4GE+POTS+WIFI6 AX3000 with USB optional XPON(GPON and GEPON dual mode) HGU ONU.
The device is fully comply with ITU-T G.984/G988 and IEEE802.3ah.The equipment integrates the
reliability, maintainability and security design of carrier-grade level, and provides customers with the last
kilometer of broadband access to residential and corporate customers. It can also be applied to a strictly
temperature environment, and can work stable for longtime without service interruption.
X416R is interoperable with all brands of OLT and is Easy to install, provisioning and maintenance.
The device can identify the working mode of the OLT to automatically complete the switch between
GPON and EPON, The device can be freely switched between bridge and routing modes, and
supports PPPoE dial-up and IPv6 functions in routing mode to meet the needs of different scenarios.

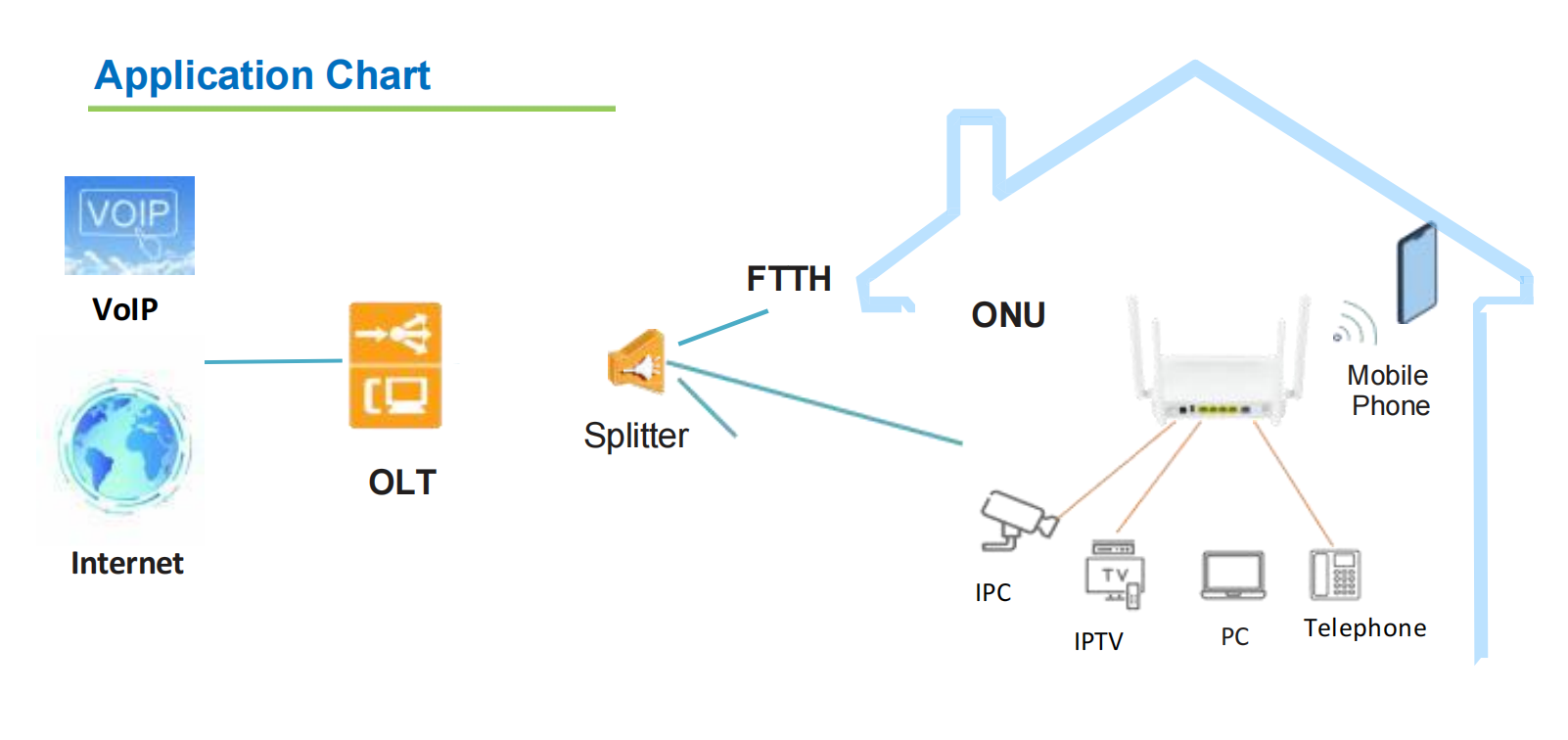

Application Chart

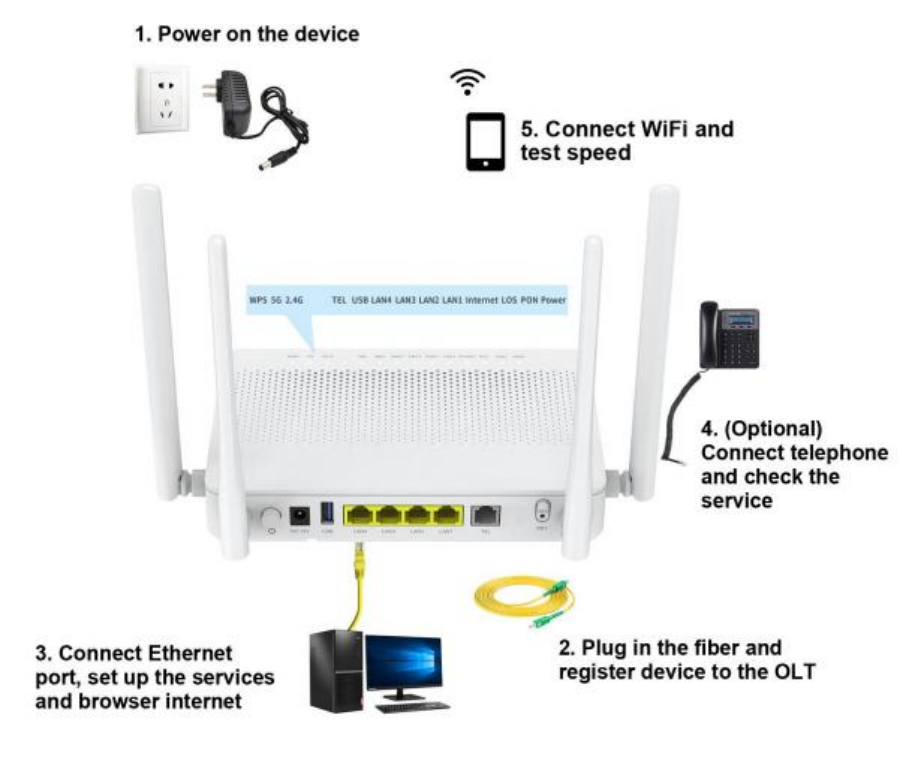

Product Interface and LED
Product Parameters
Hardware Parameter | |
| Dimension | 246mm×157mm×38mm（L×W×H） |
Net weight | 355g |
Operating condition | • Operating temperature: -10 ~ +50。C • Operating humidity: 10 ~ 90% (non-condensing) |
Storing condition | • Storage temperature: -40 ~ +70。C • Storage humidity: 5 ~ 95% (non-condensing) |
Power adapter | DC 12V/ 1.5A, external AC-DC power adapter |
Interfaces | XPON+4×GE+USB3.0+1×POTS+WiFi AX3000 |
Buttons | Reset ,WPS |
Indicators | Power, PON, LOS, Internet, LAN1-4, USB, TEL,2.4G, 5G, WPS |
Interface Parameter | |
PON interface | • 1*XPON port(EPON PX20+ and GPON Class B+) • PON standard: GEPON IEEE802.3ah, GPON ITU-T G.984 • SC single mode, SC/UPC connector • TX optical power: 0～4dBm(EPON) or 0.5～5dBm(GPON) • RX sensitivity: EPON: -27dBm GPON: -28dBm • Overload optical power: -3dBm(EPON) or - 8dBm(GPON) • Transmission distance: 20KM max • Wavelength: TX 1310nm, RX1490nm, |
LAN interface | • 4×GE Auto-negotiation RJ45 ports |
POTS interface | • 1×RJ11 Connector |
USB interface | • 1×USB 3.0 |
WiFi interface | • Compliant with IEEE802.11b/g/n/ac/ax • WiFi: 2.4GHz 2×2, 5.8GHz 2×2 MIMO • 4*5dBi external antennas • Multiple SSID |
Software Features | |
PON | • G/EPON Dual Mode • SN and LOID+Password multiple registration methods |
Layer2 | • Support VLAN transparent/tag/translate/trunk • Support Layer 2 802.1Q VLAN, 802.1P QoS, ACL etc |
Layer3 | • IPv4, IPv6 and IPv4/IPv6 dual stack • Support bridge, router & bridge/router mixed mode • DHCP v4/v6 Client/Server, PPPoE & Static • Support Static Routing • Support hardware NAT |
Multicast | • Support IGMP v2 and MLD proxy/ snooping • Support MultiCast VLAN & MultiCast Maximum Address |
Security and Firewall | • DDoS, Filtering Based on ACL/ MAC/ URL • Support DDNS, ALG, UPnP, Port forwarding, DMZ • HTTP/ SSH/ Telnet Service Access Control • Support Parent control • Support PPTP , L2TP, Pass-through service |
QoS | • Support 4 queues • Support SP, WRR, 802.1P and DSCP |
VoIP | • SIP and IMS SIP • G.711a/ G.711u/ G.722/ G.729/ G.723/ G.726 Codec • Echo cancellation,VAD/CNG,DTMF Relay • T.30/T.38 FAX • Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Meeting conference • Line testing according to GR-909 • Support high-quality broadband voice |
WiFi | • Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz • WiFi Encryption:WEP-64/WEP-128/ WPA/WPA2/WPA3 • Support WiFi Easy-mesh function |
Management | • Support Telnet, CLI, OMCI/OAM ,TR069 and Web management |
Interface Parameter
Ordering information
Product Name | Product Model | Descriptions |
XPON ONU 4GE+1POTS+WiFi6 AX3000+USB3.0 (Realtek chipset) | X416R | 4 * 10/100/1000Mbps Ethernet interface, 1*G/EPON interface, 1* VoIP(RJ11) interface ,1 * USB 3.0 interface, • Compliant with IEEE802.11b/g/n/ac/ax • WiFi: 2.4GHz 2×2, 5.8GHz 2×2 MIMO • 4*5dBi external antennas • Multiple SSID, external AC-DC power adapter DC 12V, 1.5A |
